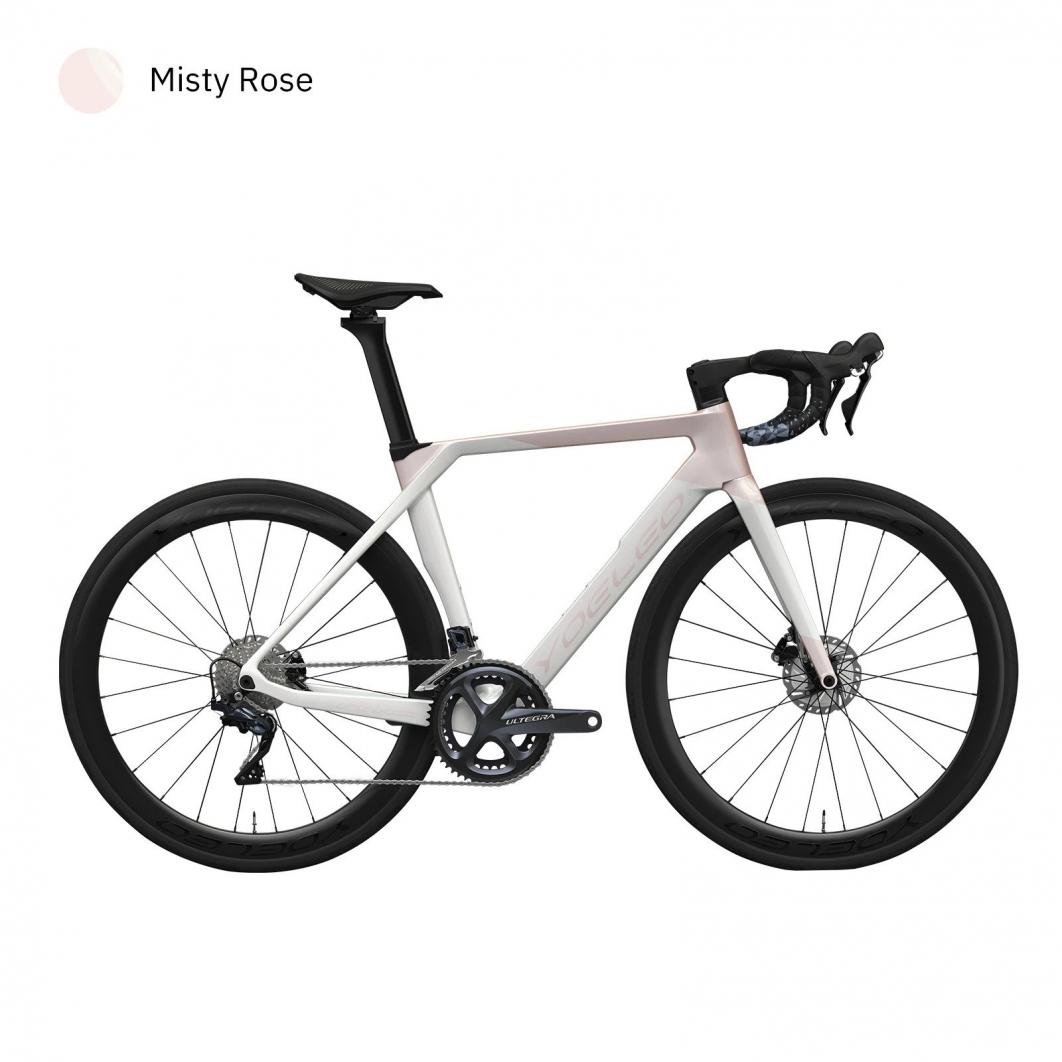

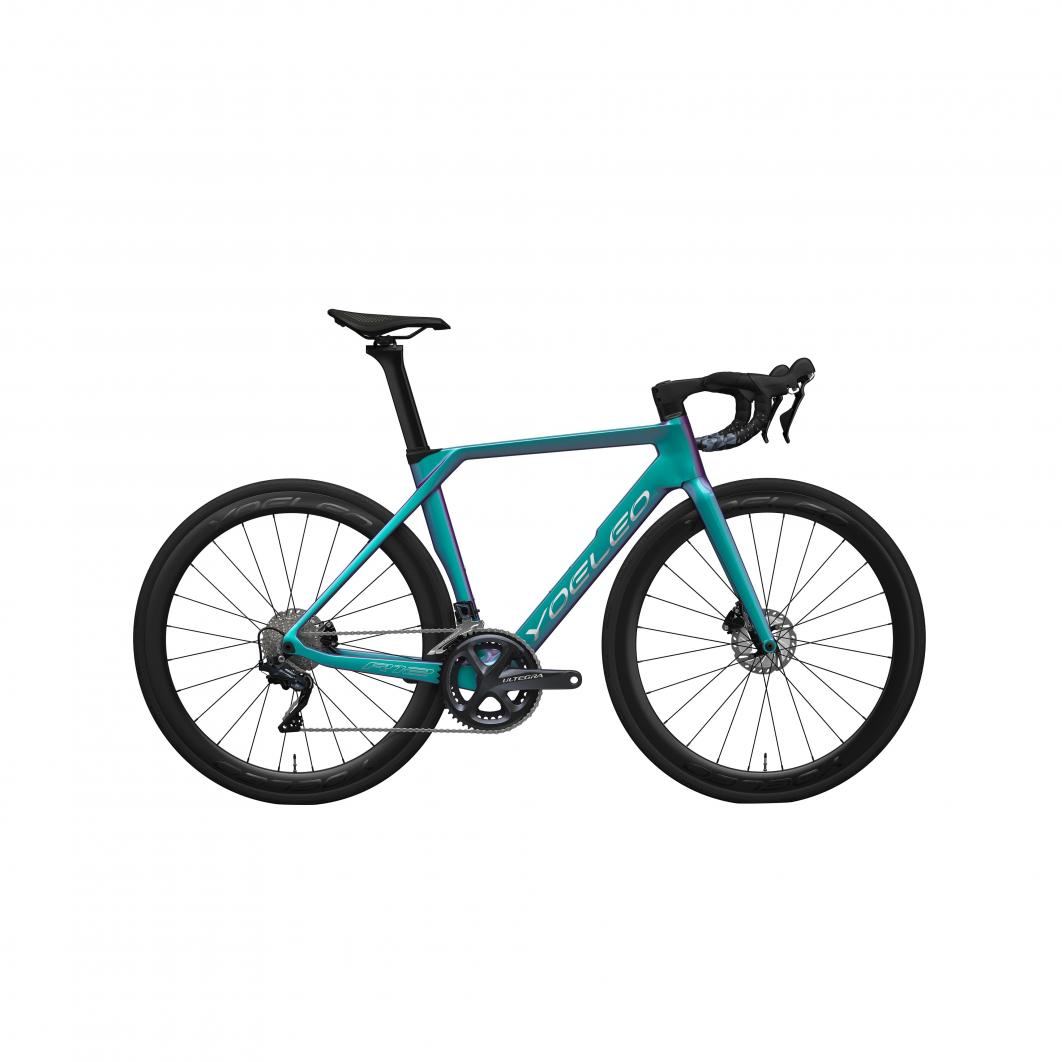

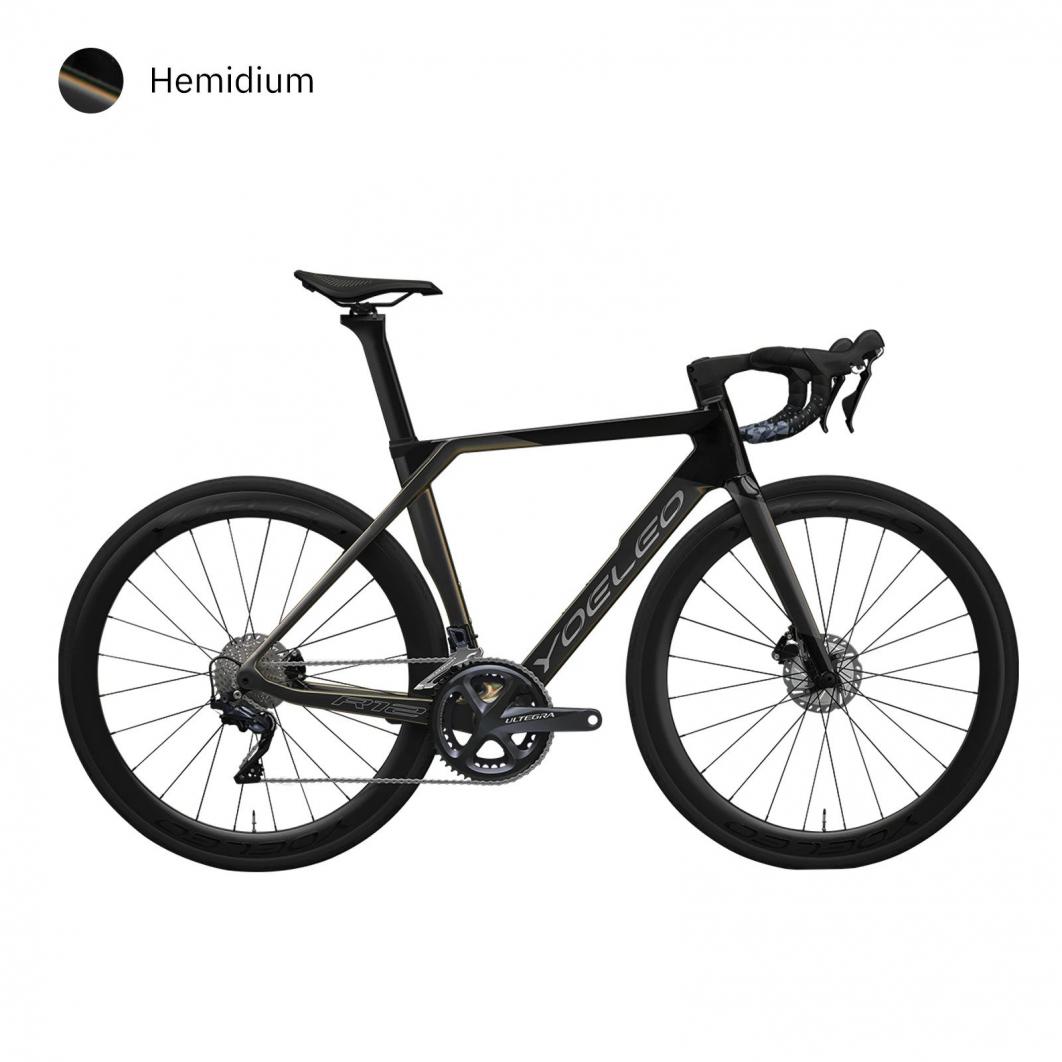

R12 PRO Aero Disc Brake Carbon Road Bike
Complete Bike
IDR
60.750.000
Ukuran frame
Warna
Lebar handlebar
Wheelset
Share :
| Ukuran Frame: | 43cm,47cm,50cm,52cm,54cm,56cm,59cm |
| Warna: | Chameleon/Lightning Yellow/Navy Blue/Night Black/Pearly White/Pinky Dust/Red Candy/Stealth Black |
| Frame | YOELEO R12 Aero Frame Material: Carbon Fiber T800 Dimensi As Roda: 12 x 142 mm Brake Mount: Flat Mount Berat: 950g (Size 50) |
| Fork | YOELEO R12 Fork Material: Carbon Steerer: 1-1/2” Dimensi As Roda: 12 x 100 mm Brake Mount: Flat Mount Berat: 390g |
| Handlebar | YOELEO H9 Handlebar Lebar Handlebar: 380mm/400mm/420mm/440mm Panjang Stem Handlebar: 90mm/100mm/110mm/120mm Berat:325+/-15gram |
| Groupset | Shifter Shimano Ultegra R8020, 11-Speed Front Derailleur Shimano Ultegra R8020, braze-on Rear Derailleur Shimano Ultegra R8020 Crank Shimano Ultegra R8000 Cassette Shimano Ultegra R8000, 11 speed Chain Shimano Ultegra HG701, 11-speed Brake Shimano Ultegra hydraulic disc, flat mount Rotor Front 160mm/Rear 140mm |
| Wheelset | YOELEO SAT C50|50 DB STD Thru Axle: 12*100/12*142 Ban Continental GrandSport Race 700*28C |
Geometry:
| Size Dimension | A | B | C | D | IS | F | G | H | I | J | TO | L | M |
| 43CM | 430 | 505 | 370.6 | 501.6 | 100 | 75° | 70.5° | 72 | 415 | 572.9 | 977 | 43 | 371 |
| 47CM | 450 | 516 | 375.9 | 505 | 100 | 74.5° | 71.5° | 72 | 415 | 570.7 | 974.8 | 43 | 371 |
| 50CM | 470 | 528 | 378.6 | 520.9 | 115 | 74° | 72° | 72 | 415 | 574.2 | 978.3 | 43 | 371 |
| 52CM | 490 | 540 | 381 | 536.9 | 130 | 73.5° | 72.5° | 72 | 415 | 577.1 | 981.3 | 43 | 371 |
| 54cm | 510 | 552 | 386 | 550 | 145.7 | 73° | 73° | 72 | 415 | 583.5 | 987.6 | 43 | 371 |
| 56CM | 530 | 567 | 388.2 | 567.2 | 160 | 72.5° | 73° | 72 | 415 | 588.9 | 993.2 | 43 | 371 |
| 59CM | 560 | 582 | 393 | 581.6 | 175 | 72° | 73° | 72 | 415 | 598.1 | 1002.4 | 43 | 371 |
