R11 STD Disc Brake Carbon Road Bike

Complete Bike

IDR 53.800.000

Ukuran frame

Warna

Lebar handlebar

Panjang stem handlebar

Wheelset

Frame Sizes: 49cm,52cm,54cm,56cm,59cm

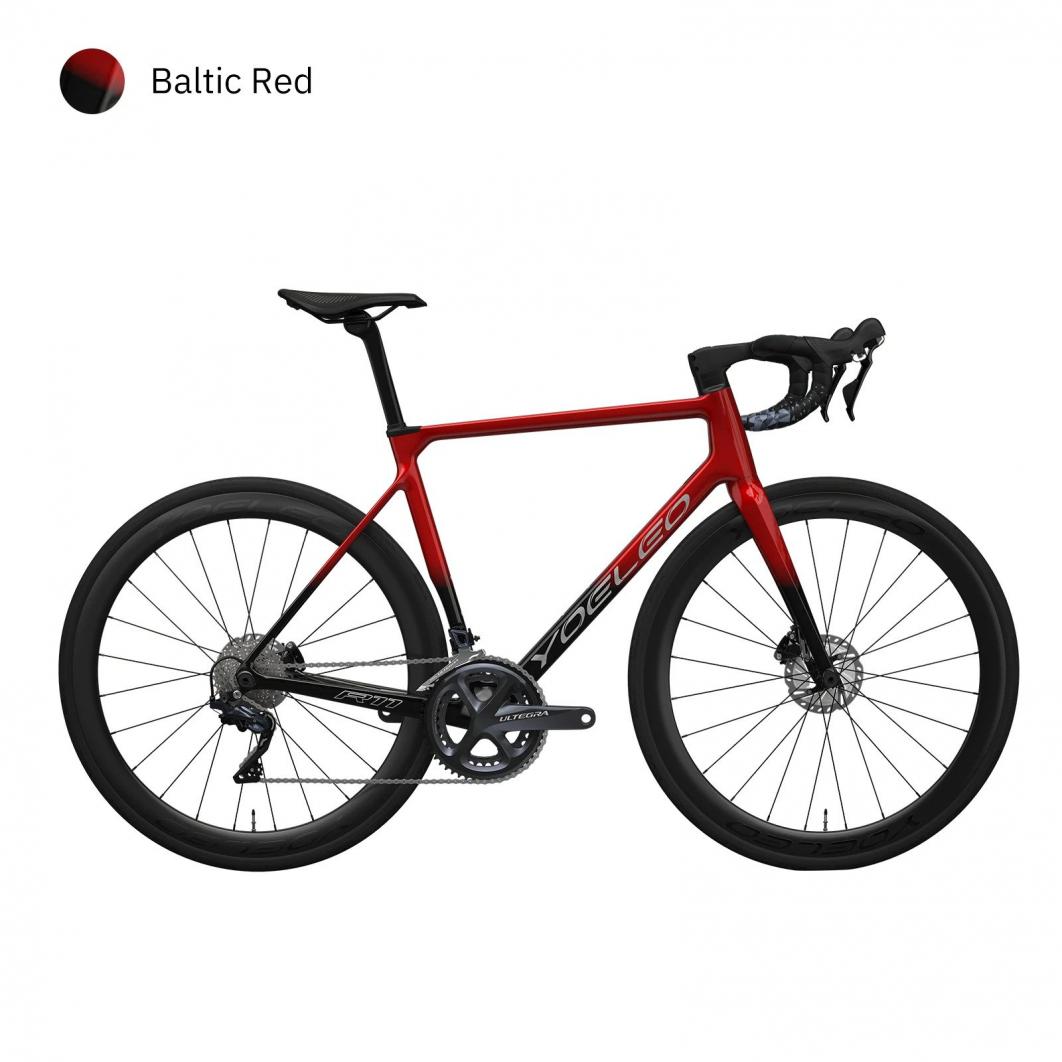

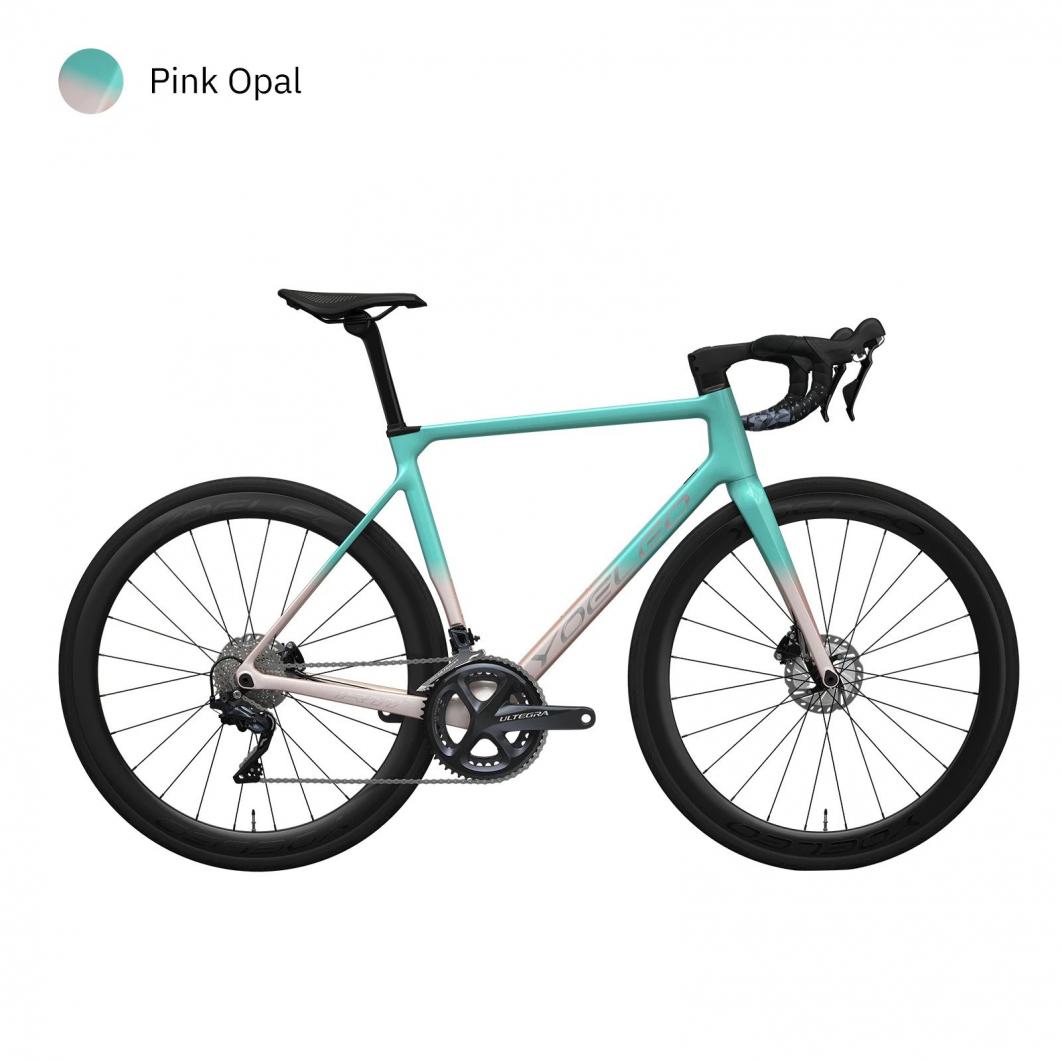

Color: Color: Chromatic Grey / Baltic Red / Blue Spectrum / Pink Opal / Snowfrost White

Frame
YOELEO R11 Super Light Frame
Material: Carbon Fiber T1000
Axle Dimension: 12 x 142 mm
Brake Mount: Flat Mount
Weight: 850g(54cm)
Seatpost Weight: 204g

Fork
YOELEO R11 Super Light Fork
Material: Carbon
Steerer: Taper 1-1/8” to 1-1/2”
Axle Dimension: 12 x 100 mm
Brake Mount: Flat Mount
Weight: 390g

Handlebar
YOELEO H9 Handlebar
Handlebar Width: 380mm/400mm/420mm/440mm
Handelbar Stem: 90mm/100mm/110mm/120mm
Weight: 325+/-15gram

Groupset
Shifter Shimano R7020, 11-Speed
Front Derailleur Shimano R7000, braze-on
Rear Derailleur Shimano R7000
Crank Shimano R7000
Cassette Shimano R7000, 11-speed
Chain Shimano 105 HG601, 11-speed
Brake Shimano 105 hydraulic disc, flat mount
Rotor Front 160mm/Rear 140mm

Wheelset
YOELEO SAT C50|50 DB STD
Thru Axle: 12*100/12*142
Tires Continental GrandSport Race 700*28C

Geometry:

Size Dimension	L Reach	M Stack	A Top Tube Length	B Head Tube Length	C Seat Tube Angle	D Head Tube Angle	E BB Drop	F Chain Stay	G Wheel Base	H BB to Front Wheel	I Fork Length	J Fork Rake	K Seat Tube Length
49CM	373	514	520	110	74°	72.5°	69	410	965	565	370	45	455
52CM	384	523.5	535	120	74°	72.5°	69	410	975	579.5	370	45	475
54cm	385	541	545	136	73.5°	73°	69	410	975	580.2	370	45	495
56CM	394.5	578	560	155	73.5°	73°	69	410	990	594.9	370	45	515
59CM	398	579	575	175	73°	73.5°	69	410	995	600	370	45	535
