R11 STD Rim Brake Carbon Road Bike
Complete Bike
Frame Sizes: 49cm,52cm,54cm,56cm,59cm

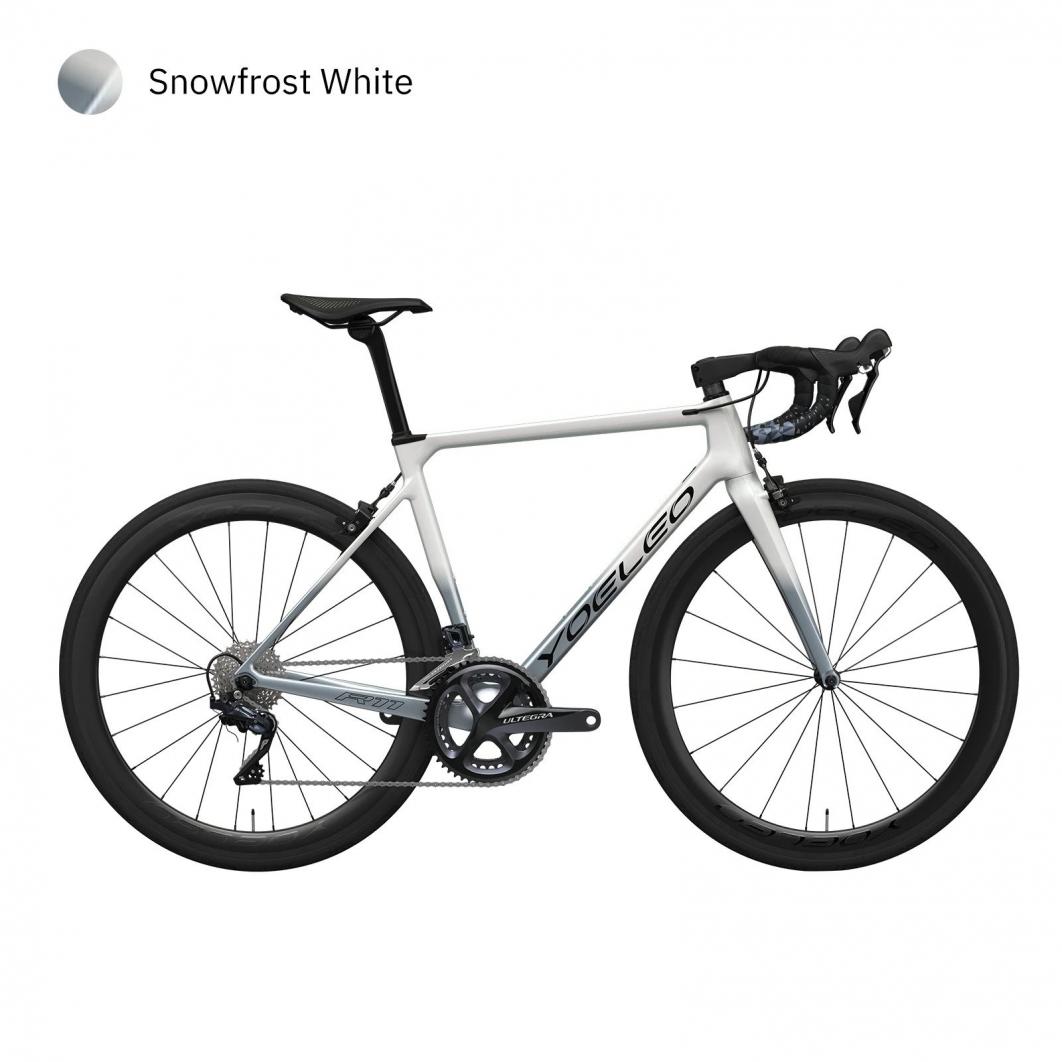

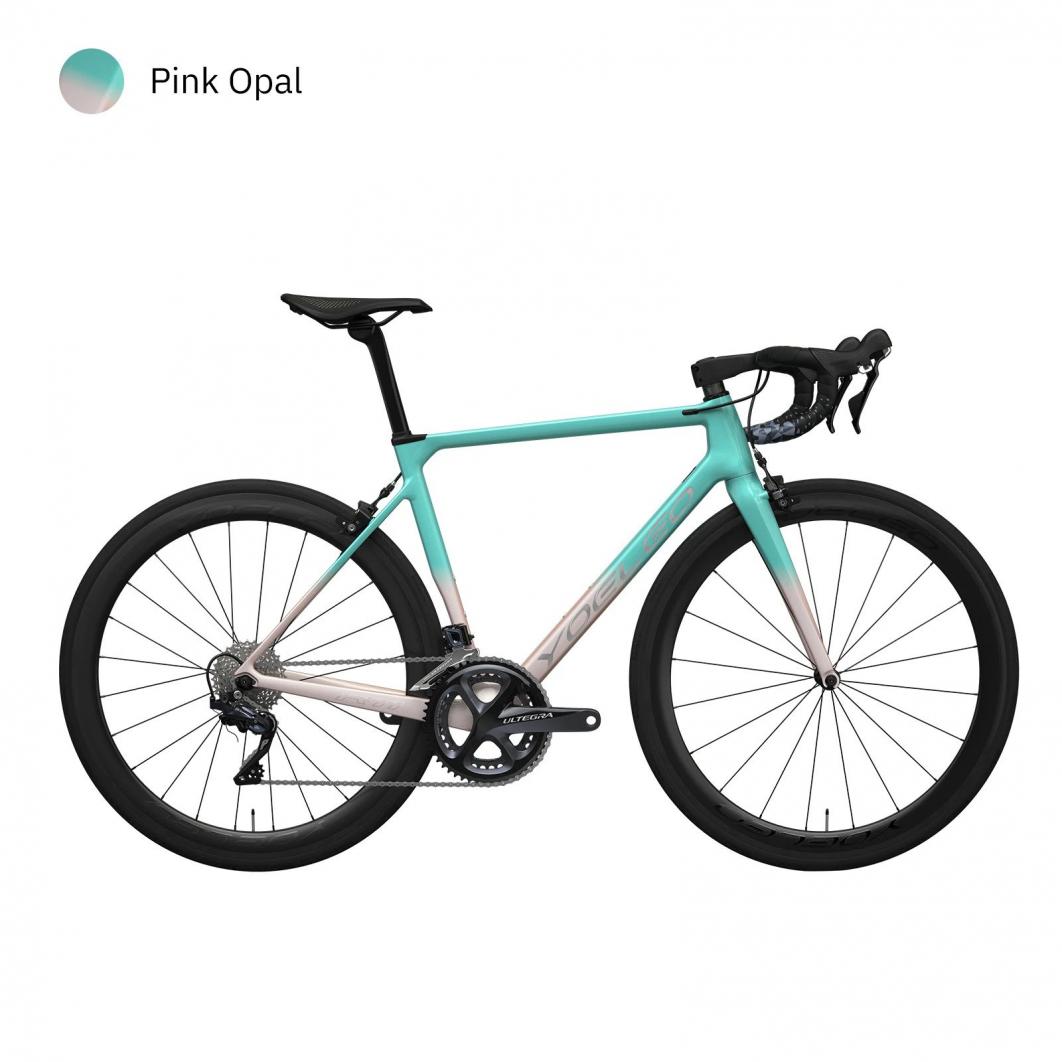

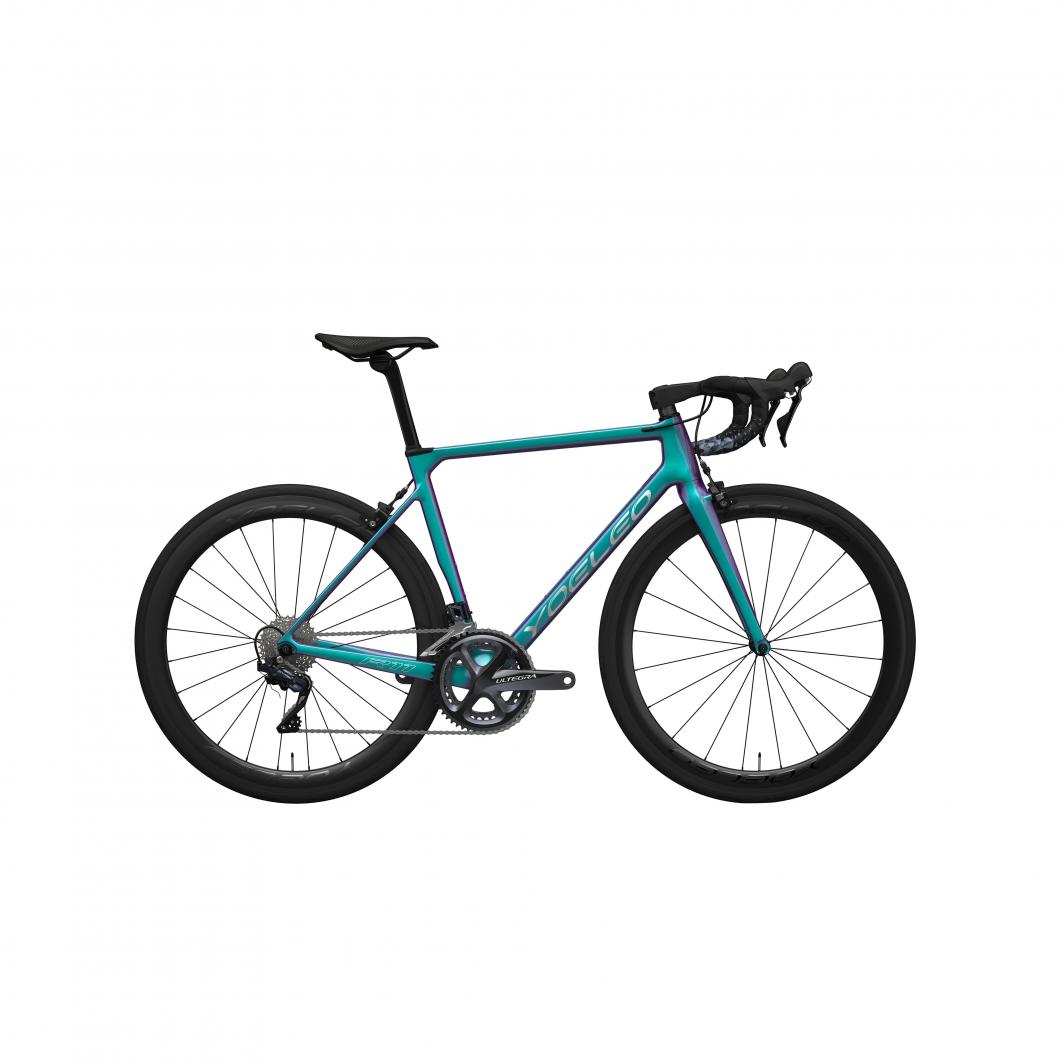

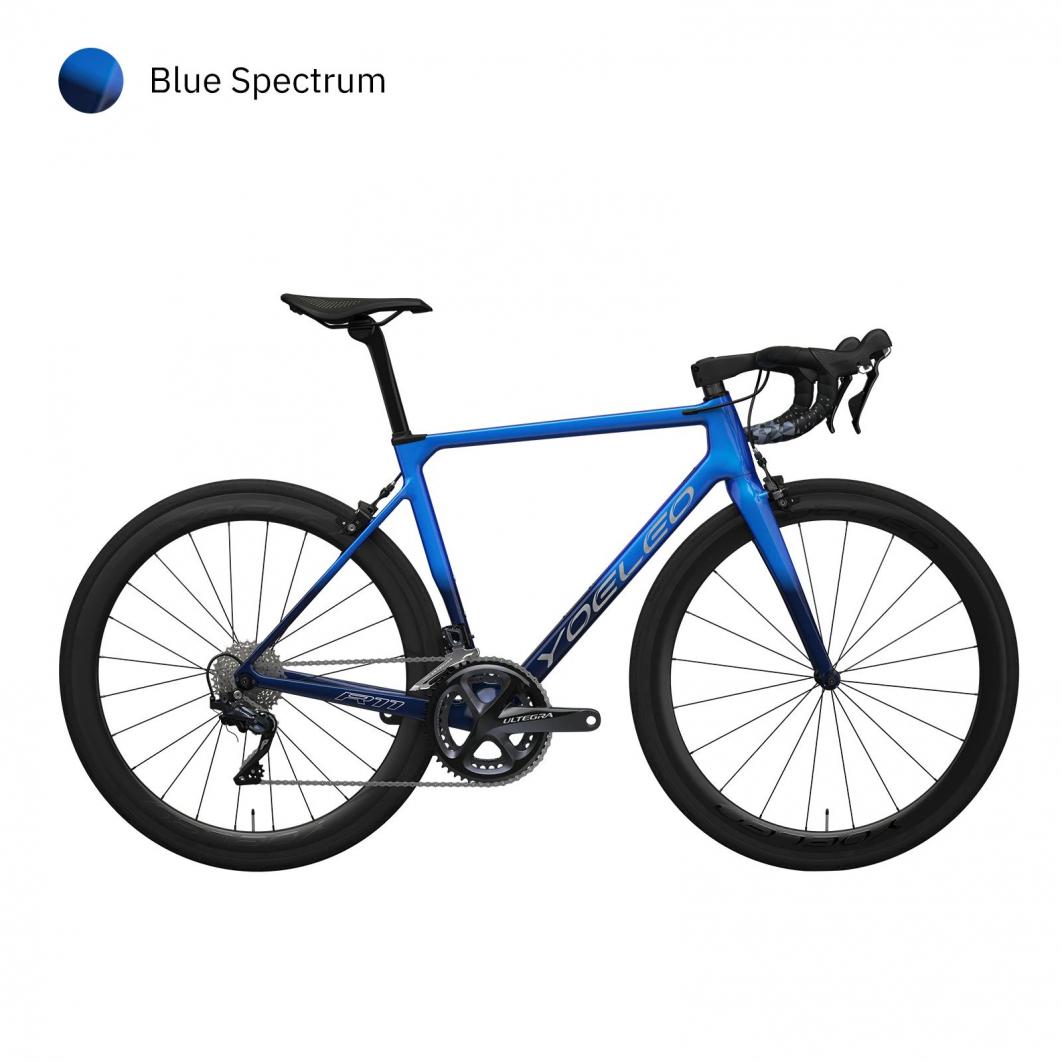

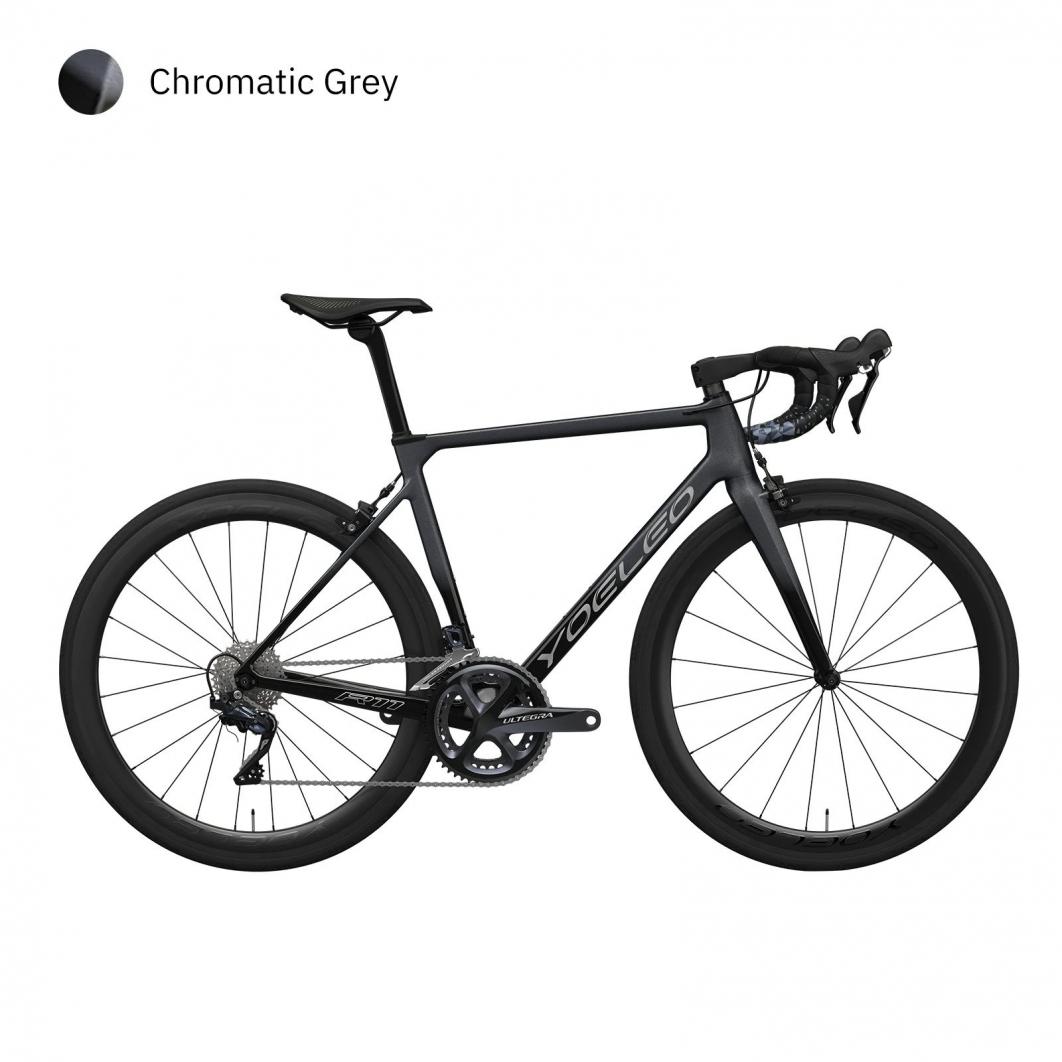

Color: Chromatic Grey / Baltic Red / Blue Spectrum / Pink Opal / Snowfrost White
Frame
YOELEO R11 Super Light Frame
Material: Carbon Fiber T1000
Brake Mount: Direct Mount
Weight: 850g(54cm)
Seatpost Weight: 204g
Fork
YOELEO R11 Super Light Fork
Material: Carbon
Steerer: Taper 1-1/8” to 1-1/2”
Brake Mount: Direct Mount
Weight: 390g
Handlebar
YOELEO H9 Handlebar
Handlebar Width: 380mm/400mm/420mm/440mm
Handelbar Stem: 90mm/100mm/110mm/120mm
Weight: 325+/-15gram
Groupset
Shifter Shimano R7000, 11-Speed
Front Derailleur Shimano R7000, braze-on
Rear Derailleur Shimano R7000
Crank Shimano R7000
Cassette Shimano R7000, 11-speed
Chain Shimano HG601, 11-speed
Brake Shimano R7000
Wheelset
YOELEO SAT C50|50 STD Clincher/Tubeless
Tires Continental GrandSport Race 700*28C
Geometry:
| Size Dimension | L Reach |
M Stack |
A Top Tube Length |
B Head Tube Length |
C Seat Tube Angle |
D Head Tube Angle |
E BB Drop |
F Chain Stay |
G Wheel Base |
H BB to Front Wheel |
I Fork Length |
J Fork Rake |
K Seat Tube Length |
| 49CM | 373 | 514 | 520 | 110 | 74° | 72.5° | 69 | 410 | 965 | 565 | 370 | 45 | 455 |
| 52CM | 384 | 523.5 | 535 | 120 | 74° | 72.5° | 69 | 410 | 975 | 579.5 | 370 | 45 | 475 |
| 54CM | 385 | 541 | 545 | 136 | 73.5° | 73° | 69 | 410 | 975 | 580.2 | 370 | 45 | 495 |
| 56CM | 394.5 | 578 | 560 | 155 | 73.5° | 73° | 69 | 410 | 990 | 594.9 | 370 | 45 | 515 |
| 59CM | 398 | 579 | 575 | 175 | 73° | 73.5° | 69 | 410 | 995 | 600 | 370 | 45 | 535 |
Sizing & Fit:
The charts below show our recommended sizes based on height, but there are some other factors, like arm and leg length, that determine a great fit.
That’s why you’ll see some overlap in our recommendations.
| Size | XS 49CM |
S 52CM |
M 54CM |
L 56CM |
XL 59CM |
| Rider Height | 165-173CM | 170-178CM | 175-183CM | 180-188CM | 185-193CM |
